PRO-Steel Decking Roll Forming Machine

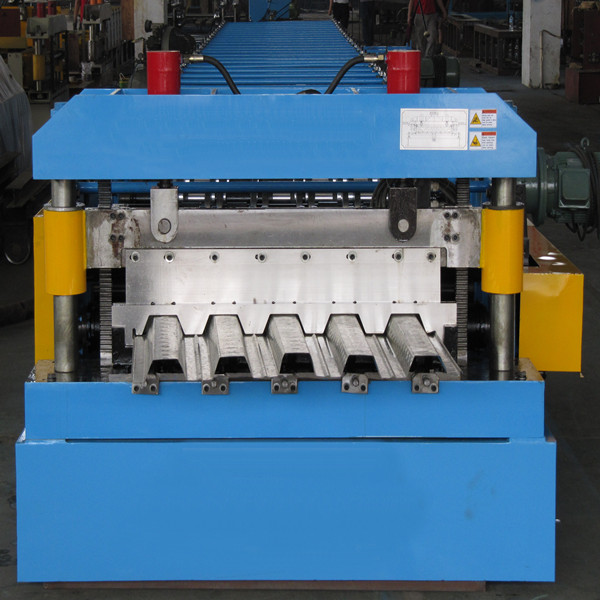

YX75-200-600 Decking Machine
A. Profile
B. Main technical parameter:
a)       Un-coiler:Passive open the coil,manual expansion
b)      Capability of un-coiler:5T
c)       Frame of machine: welding flange beam
d)      Form of guide feeding: side roller type
e)       Machine form: wallboard and chain transmission
f)        The diameter of main shaft:?85mm
g)       Chain: 16A single row
h)       Power of main motor:22kw
i)    Working speed:8-15 m/min
j)         Roller station:28 steps
k)       Material of roller:NO.45 steel forgings
l)         The surface of roller coating hard chromium: 0.05mm
m)    Motor of punching and flanging:4kw
n)       Power of hydraulic motor: 5.5kw
o)      Oil pump of hydraulic station:gear pump
p)      Cutter: hydroforming shear
q)      The material of cutting blade:Cr12
r)        Quenching rigidity: HRC58-60°
s)       Material thickness:0.8 -1.2mm
t)         Feeding width:1000mm
u)       Tolerance of length:±2mm
v)       The type of transducer:Panasonic
w)     PLC controller: Panasonic
C. Working process:
Passive open the coil→feeding panel with guide→roll forming→cutting with fixed length→output with supporter
D. Flow drawing:
E. Equipment including:
Passive de-coiler(5T)、forming machine、hydraulic cutting、hydraulic station、PLC computer control cabinet、output table
F. Delivery Time:40 days
